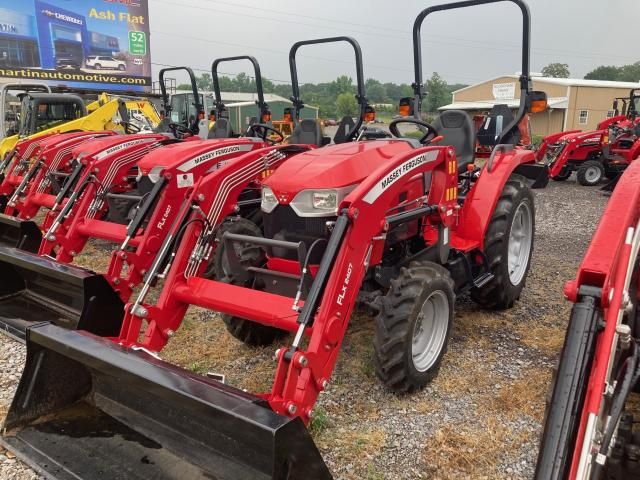

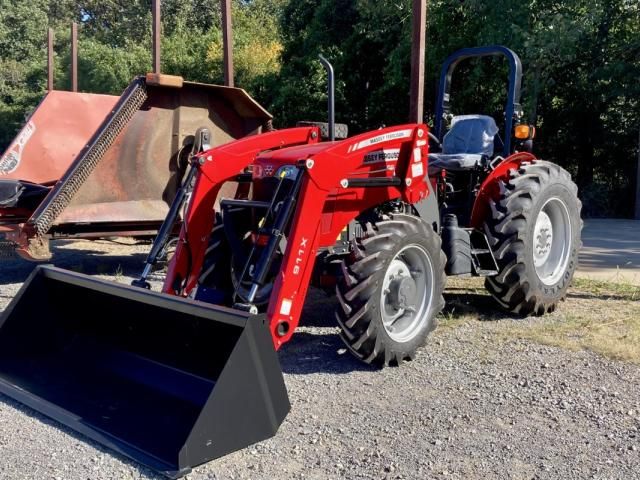

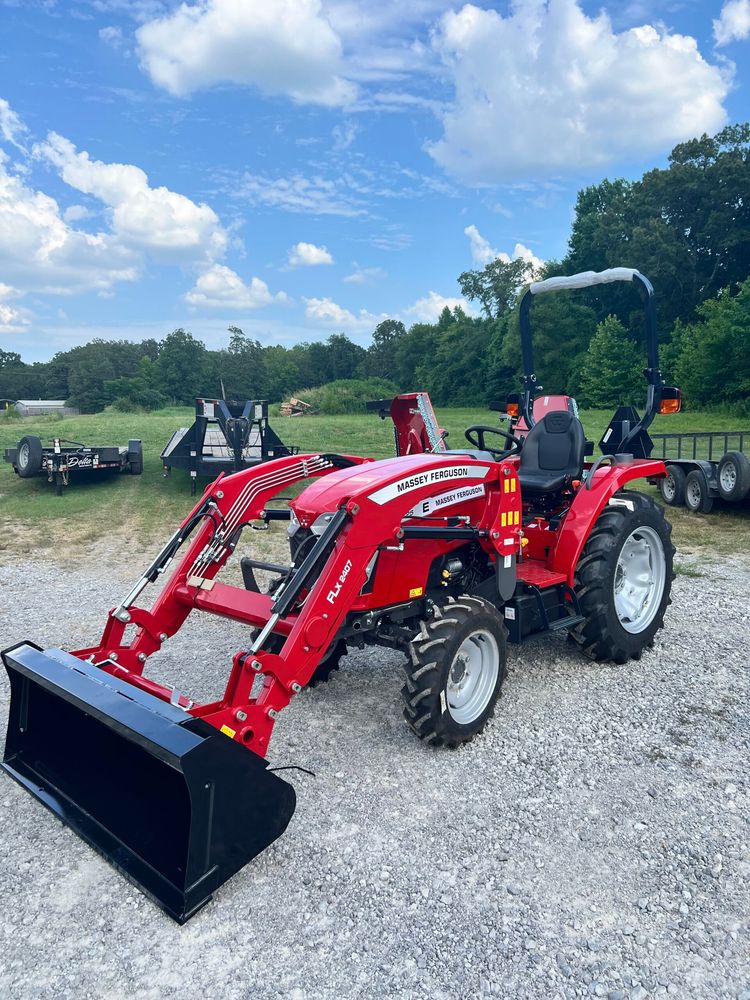

New Massey Ferguson 2860E Platform Tractor/FL 2815 Loader

New Massey Ferguson 2860E Utility Tractor, 4×4, 8 speed mechanical shuttle transmission, Iseki diesel engine, rear hydraulic outlet, 9.5-24 front tires R1, 16.9-28 rear tires R1, MF FLx2815 Loader w/72″ SSQA bucket

Engine:
57.3 Gross Engine HP Iseki 4-Cylinder liquid
cooled Diesel, 2.43 L Direct Injection,
Turbocharged, Internal Exhaust Gas
Recirculation (EGR), Diesel Oxidation
Catalyst (DOC), Regenerating Diesel
Particulate Filter (DPF), Electronic Engine
Control
48.8 PTO HP @ 2600 RPM – 8×8
45.0 PTO HP @ 2600 RPM – Hydrostatic
Emission Standard Category: Tier 4 Final
CARB and EPA Certified
• Dual Element Dry Type Air Cleaner
• Transmission:
•8F/8R Synchro Shuttle with 2 Synchronized Gears
(3rd and 4th) and 2 Ranges
•Servo-Assist Electronic Hydrostatic Transmission
with 3 Ranges and Cruise Control
• 4WD Front Axle with Center Drive Line and Bevel-gear
Final Drives
• Sealed Wet Disc Brakes
• Pedal Operated Differential Lock
• PTO: 540 RPM independent electrohydraulic
Metal hood and fenders, fully flat platform
Ground level fueling for simple and clean fueling
Analog and digital dash display
Adjustable suspended seat
Cup holder
Toolbox located behind the seat
Dimensions*
Length 3,370 mm (11′ 11/16″)
Wheelbase 1,980 mm (6′ 5-15/16″)
Minimum Overall Width (tires) 1,880 mm (6′ 2″)
Overall Height (platform) 2,600 mm (8′ 6-3/8″)
Minimum Ground Clearance 340 mm (1′ 1-3/8″)
Base Weight (platform) 1,750 kg (3,859 lbs)
Turning Radius 3,100 mm (10′ 2-1/16″)
*specifications are a base model with the tires listed in this Tire Section. Different configurations and tires may result in different values.
Rated Engine Speed 2600 RPM
Engine Make and Model Iseki E4FH
Engine Displacement 2.43 L (148.29 in³)
Number of Cylinders 4
Fuel type Diesel
Fuel Tank Capacity 53 L (14 US Gal)
Aspiration Turbocharged
Fuel Injection Direct Injection
Cooling Liquid Cooled
Transmission
Transmission Type 8×8 Synchro Shuttle / 3 Range HST
Cruise Yes
4 Wheel Drive Yes
Differential Lock Yes
Brakes Wet Disc
Hydraulics
Standard Pump Type Gear
Standard Hydraulic Flow 47.8 L/min (12.6 Gal/min)
Max Operating Pressure 16,180 kPa (2,347 PSI)
System Capacity 38 L (10 US Gal)
Rear Remote Valves Available up to 3
Steering Hydraulic Power Steering
3 Point Hitch
Rear Hitch Category Category 1 & 2
Rear Lift Capacity at Pins 1,200 kg (2,646 lbs)
Rear Lift Capacity 24″ Behind Pins 1,100 kg (2,426 lbs)
Draft Control Optional
PTO
Rear PTO Standard
Rear PTO Speed 540
Type Independent
Electrical
Standard Front Lights 2
Alternator 45 amp
Battery size 600 CCA

FL 2815 Loader Specs:
Maximum Lift Height at Pivot Pins: 111 Inches
• Lift Capacity to Full Height at Pivot Pins: 2,810 lbs
• Breakout Force at Pivot Pins: 4,240 lbs
• Rated Hydraulic Pressure: 2,350 PSI
• Maximum Roll Back Angle: 27 Degrees
• Dump Angle: 38 Degrees
• NOTE: Soft Drive Capable, Third Function Capable
