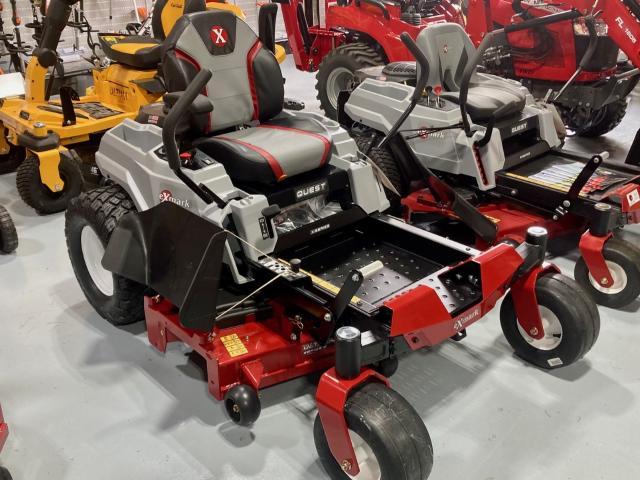

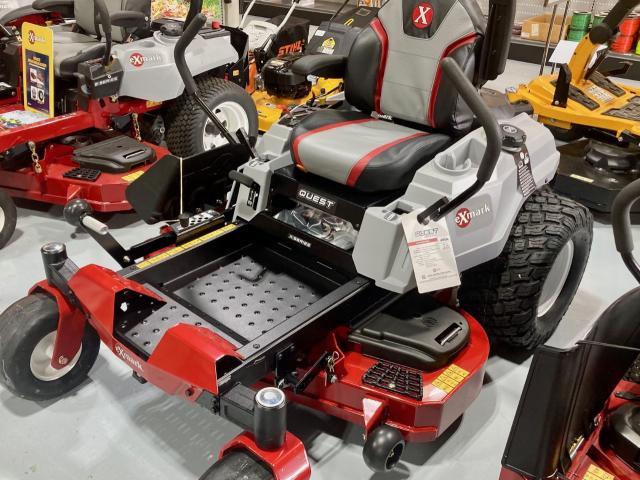

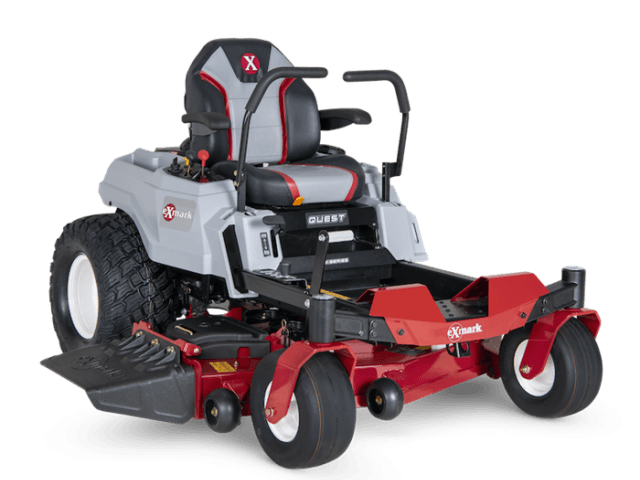

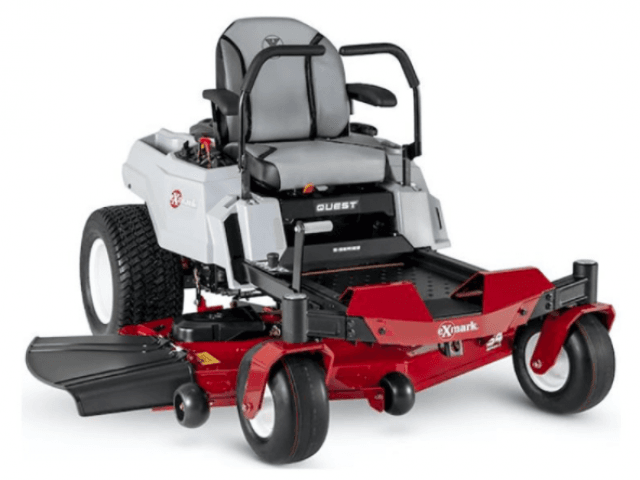

New Exmark Quest X Series 48″ Zero Turn Mower

The new Quest X-Series residential zero-turn mower with commercial features and performance. The powerful Kohler engine, upgraded 48-inch UltraCut Series 3 cutting deck and heavy-duty Hydro-Gear transmission enable Quest X-Series to cut at up to 8 mph. When combined with the incredible maneuverability of the low center of gravity frame design and the smooth rolling of the large drive and caster tires, Quest X-Series offers an unbeatable combination of performance and value. A new armrest-equipped operator seat provides a smooth ride over bumpy lawns, while a deeper floor pan offers increased legroom for the operator. A standard deck step is included to ease mounting and dismounting the machine, while an integrated hitch and tools-free belt shields ease access for service and maintenance. However, with just two annual grease points and low-maintenance integrated hydro transmissions, servicing the Quest X-Series isn’t something you’ll need to do often.
-Features-
*Integrated Hydro Transmission
The upgraded Hydro-Gear transmissions feature an integrated design, which reduces maintenance and increases reliability, while providing forward speeds of up to 8 mph.
*UltraCut Series 3 Cutting Deck
Our 5-inch deep UltraCut Series 3 cutting deck features fabricated and welded construction, with heavy-duty maintenance-free sealed bearing cutter housings. Our exclusive flow-control baffles deliver Exmark’s signature cut quality.
*Commercial-Grade Tires
Aggressive 22-inch drive tires provide superior traction and a smooth ride when combined with the large 13×6.5-inch caster tires.

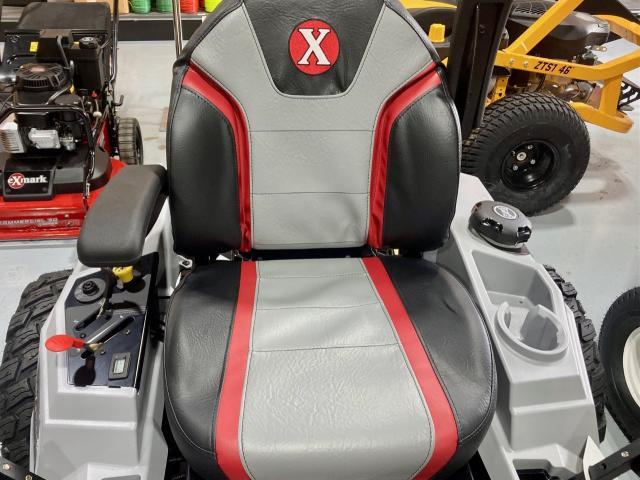

*Upgraded Operator Seat
The contoured operator seat features deep padding and standard armrests. When combined with the deeper floor pan, which provides more legroom, the Quest X-Series keeps you comfortable while mowing.
-EQUIPMENT-
Blade Spindles
No maintenance, sealed and non-greasable spindles; 7.30″-diameter cutter housing contains 17mm (.67″) diameter spindle shaft and hex blade drive.
Drive Tires
22 x 11-10 K3012
Front Caster Tires
13 x 6.5-5 smooth-tread, pneumatic.
Caster Forks
.375″ thick caster yoke arms.
Tractor Frame
Unibody, riveted 10-guage steel.
Steering Control
Hydraulically dampened twin levers adjustable both fore and aft. Also has 2-position height adjustment.
Parking Brake
Lever-actuated pawl brake.
Seat
Commercial grade, high back contoured foam padded with arm rests. Hinged mounting and spring suspension. Adjustment is fore and aft for operator position.
Electrical
12 volt battery with 15-amp alternator
Standard Features
Engine hour meter, cup holder and hitch
-ENGINE-

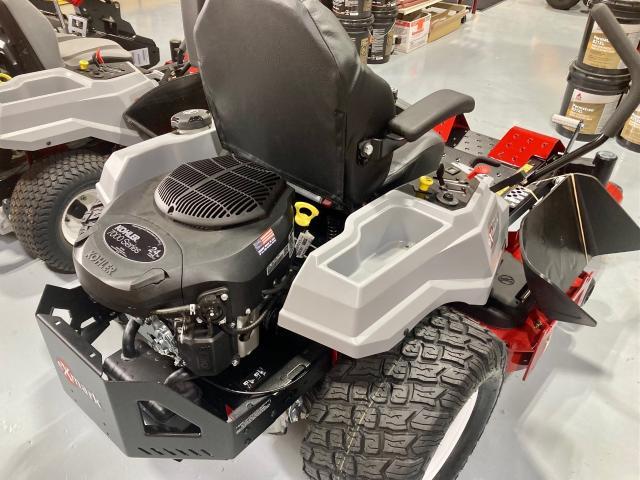

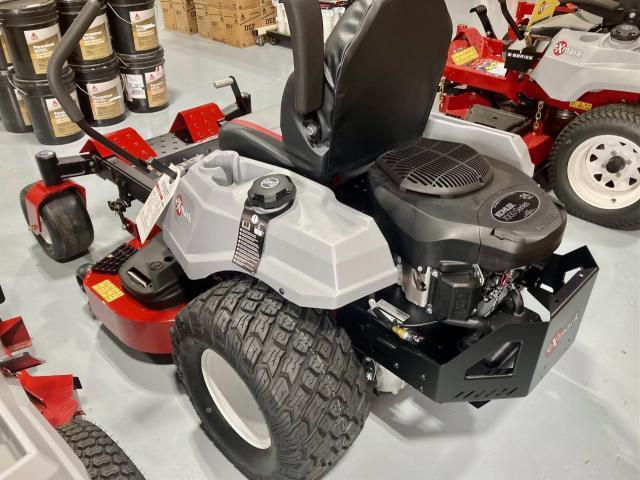

Engine Brand
Kohler
Engine Model
KT735
Engine Displacement
735
Engine Series
7000 Series
Fuel System
Carbureted
Engine Speed
3,600 rpm
Air Filter
Standard Engine Manufacturer’s air filter
Fuel Type
Gas Carbureted
Fuel Capacity
3-gallon (11.0-L), single fuel tank with single fill locations
Fuel Indicator
Translucent Visual
Drive
Hydro-Drive
Drive Description
Dual Hydro Gear ZT2800, hydrostatic transmission with charge pumps, relief valves and independent, replaceable filters.
Speed
Infinitely variable speed selection from 0–8.0 mph (12.9 kmph) forward, 0–5.0 mph (8.0 kmph) reverse.
Carb Compliant
No
Deck Lift
Standard; foot-controlled deck lift changes cutting height and lifts the deck to maneuver around obstacles, or place in transport position.
Safety Package
Operator Presence Controls (OPC) and drive system interlock.
ROPS
Optional Rigid ROPS with seat belt and latch.
PTO Engagement
Electromagnetic 105-ft-lb clutch
Drive Wheel Release
Allows unit movement without engine running.
